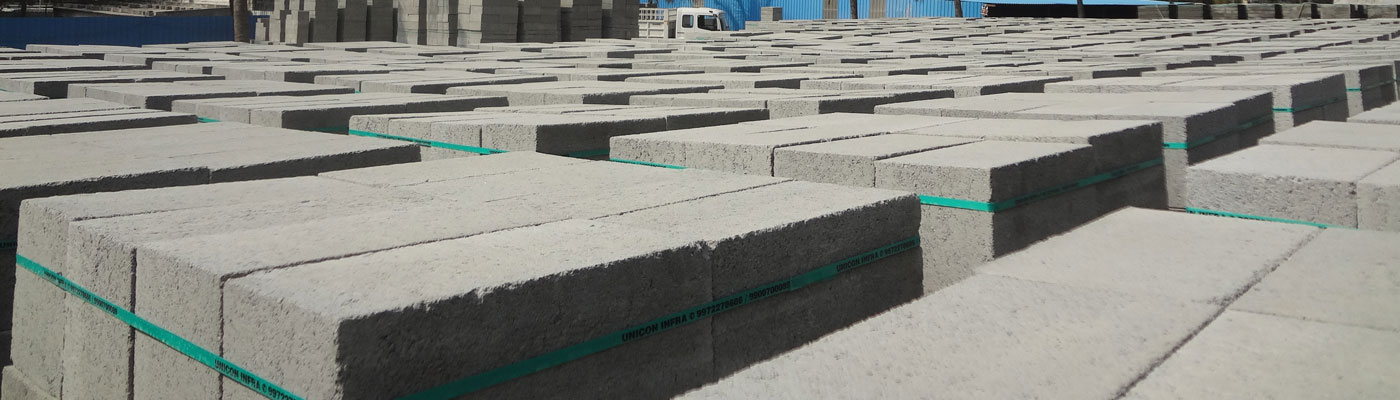

We manufacture concrete blocks for use in a variety of projects, from single storied housing to multi-storey developments, commercial buildings, schools, colleges, hospitals, super markets, sports and leisure centers.
At Unicon we have installed the best equipment and machinery and ensure that exceeding industry expectation becomes our minimum standerd. Our intregrated system automatically controls the ingredients of every batch prepared, giving exceptional control over quality.
Evidence of our extraordinary attention to detail can also be seen in our machinery which produces dimensionally accurate and aesthetically pleasing concrete blocks designed to meet the highest demands possible.
The unmatched finishing, strength and sharp edges of the finished blocks stand testimony to our commitment to quality.
Sizes | ||
---|---|---|
400 x 200 x 100 | 16" x 8" x 4" | |
400 x 200 x 150 | 16" x 8" x 6" | |
400 x 200 x 200 | 16" x 8" x 8" |
The plant is equipped with Sicoma Planetary Mixer and is operated by highly qualified technical staff, under the able supervision of professionally qualified engineers, who are trained as per global manufacturing standards.
We have installed the most advanced imported machinery which meets international standards of quality. The machinery is equipped with Table Vibration Techonology which produces high compressive strength and uniform density blocks.
Sl. No. | Description | As per IS 2185( part 1):2005 | Unicon values |
---|---|---|---|
1 | Dimension tolerance | ||
Length | ± 5mm | ± 1mm | |
Width, Height | ± 3mm | ± 1mm | |
2 | Water absorption | <10% | <7% |
3 | Drying shrinkage | <0.06% | <0.04% |
4 | Moisture movement | <0.09% | <0.05% |
5 | Block density(Solid blocks) | C>1800 kg/ m3 | >1800 kg/ m3 |
6 | Compressive strength | ||
Solid blocks | C=4.0, 5.0 N/mm2 | >5 N/mm2 |
#86, Kumbalgodu Industrial Area,
2nd Phase, Ramohalli Road,
off Mysore Road, Bangalore -560 074
CALL NOW
SEND MAIL
Unicon infra Structure manufactures a comprehensive range of high quality and high strength masonry building blocks. compliant to all of the latest technical standards, for use in foundation, internal walls and thermally insulating walls.
